Introduction of Wire Wrapped Screen/v wire wedge wire water well screen/stainless steel wire well screen in China
Water well screens are also known as Johnson screens, wedge wire screens, LCG water well screen, wire wrapped well screens, rod based well screens, continuous slot water well screens, vee shaped wire well screens, LCG water well screen, sand control well screen, galvanized carbon steel water well screen, screen pipe, stainless steel strainer, non-reinforced johnson screen, Johnson screen tube, Steel Casing Screen, Non-reinforced strainer, SS304L 10 3/4" Wedge Wire Water Well Screen Pipe, Filter Pipes,etc.
Wire Wrapped Screen consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, Wedge wire Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce speed of the water entering to avoid the sand entering the Water Well Screens under great pressure, so it can filter sand better. Meanwhile, the slot of Wedge wire screens can change according to the real condition of the earth.

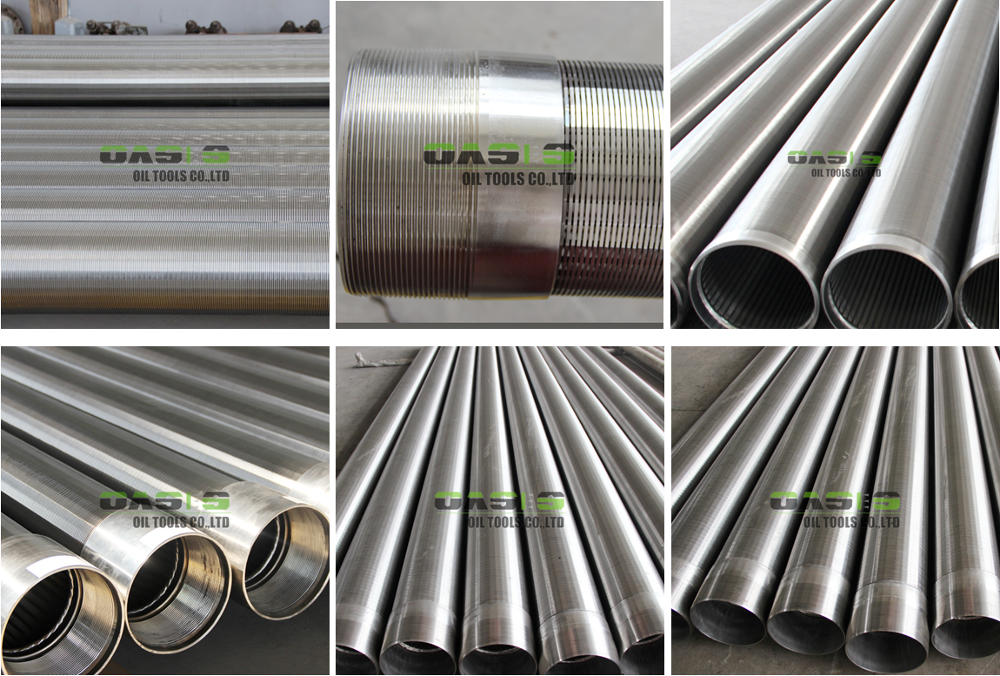

detailed images of v wire wedge wire screen/stainless steel wire well screen in China
Specifications of wire wrapped screen/stainless steel wire well screen in China
| Material |
stainless steel (304,304L,316,316L etc.)
|
| Slot size |
0.10, 0.15, 0.2, 0.25, 0.30-5 mm |
| Unit length |
1- 6m |
| Diameter |
114.3mm- 4 1/2”,168.3mm-6 5/8”, 219.1mm- 8 5/8”, 244.5mm- 9 5/8”, |
| Open area |
up to 40% |
| Surface treatment |
galvanized, painted, polish, etc.
|
| Note |
all specifications can be customized according to your requirements |
Packing&delivery of v wire wrapped screen /stainless steel wire well screen
Packing details: v wire wedge wire screens/stainless steel wire well screens are packed with woven bags or bubble bags, in bundle or unbundle; up to your requirements
Delivery time: v wire wedge wire screens/stainless steel wire well screens are delivered within 30 days or according to your quantity
bubble bags bubble bags with wooden strip wooden case
Our company
OASIS is located in Xinxiang city, Henan province, in China, which is home to wire mesh .It is a comprehensive factory of manufacturing, marketing, importing and exporting with more than 10 years’ history .Our products have been exported to Russia, Sudan, the Tunisia, Morocco, Saudi Arabia, Slovenia, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, Columbia etc, and received a good feedback from customers all over the world. OASIS has a good reputation at home and abroad, strong economic strength and has established a long-term partnership with global famous enterprises. We expect to cooperate with all factories and we are capable of providing favorable price and professional services for you!
our company collective activities
our exhibition warehouse
Certificate

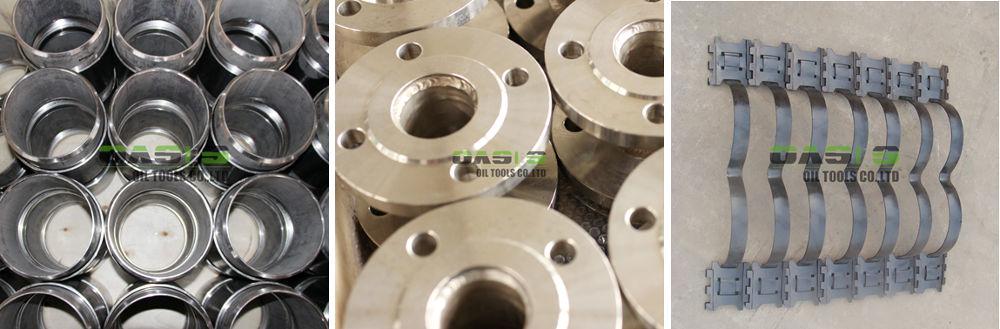

Related products of stainless steel wire well screen/ Wire Wrapped Screen
couplings hort flange pipe centralizers
pipe based well screen API casing and tubing peforated pipe
